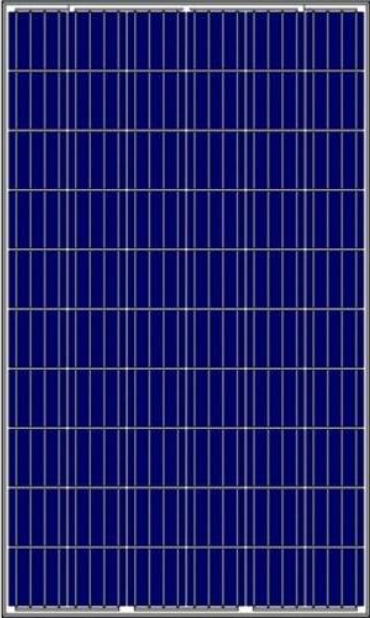

A poly crystalline solar panel to convert solar energy from sun rays to electrical energy.
Key Features
- Excellent module conversion efficiency of up to 17.31%.
- Up to +2% positive power output guaranteed.
- Reducing equipment loss increases the power generation in overall system.
- Loss minimization due to excellent temperature co-efficient.
- BOS cost Reduction for 1500 VDC System by connecting more modules in a string.
- Better performance even at low irradiance condition.
- higher specific yield.
Quality & Reliability
- Manufactured using high grade raw materials from reputed international 25 years output warranty. Suppliers adopting a stringent quality criteria.
- PID resistant (IEC 62804).
- Salt mist and ammonia corrosion resistant (IEC 61701 & IEC 62716).
- IP67/IP68 rated junction box for long-term weather endurance.
- 25 years output warranty.
- Certified with IEC & BIS.
| Module Type: | SUNSKY072FWpPY24 | |||
|---|---|---|---|---|
| Capacity rating – Pmax(Wp): | 320 | 325 | 330 | 335 |
| Power Tolerance (%): | 0-2 | 0-2 | 0-2 | 0-2 |
| Module efficiency (%): | 16.53 | 16.79 | 17.05 | 17.31 |
| Rated voltage - Vmp(V): | 36.90 | 37.20 | 37.40 | 37.70 |
| Rated current - Imp(A): | 8.68 | 8.75 | 8.83 | 8.9 |
| Open circuit voltage - Voc(V): | 45.70 | 45.90 | 46.20 | 46.50 |
| Short circuit current - Isc(A): | 9.05 | 9.12 | 9.19 | 9.26 |
Under Standard Test Conditions (STC) of irradiance 1000 W/m², spectrum AM 1.5 and cell temperature of 25°C. Except Pmax, all other parameters have a tolerance of ±3%.
| Temperature range: | -40°C to + 85°C |
|---|---|
| Maximum system voltage: | 1500/1000 VDC |
| NOCT: | 45± 2°C |
| Hail resistance: | Maximum diameter of 25 mm with velocity 23 m/s |
| Product warranty**: |
Limited warranty for power output :- 90% for 10 years and 80% for 25 years |
|---|---|
| Product Certificates: | IEC 61215, IEC 61730,IEC 61701,IEC 62716,IEC 62804, CE, BIS |
| Solar cells: | 72 pcs Polycrystalline Silicon, SSB/4B8 |
|---|---|
| Encapsulation: | Ultra - clear PID free EVA (Ethylene-Vinyl-Acetate) |
| Backside: | UV protected reflective backsheet |
| Frame: | Silver Anodized Aluminium Alloy (screwless) |
| Front glass: | 3.2 mm, High Transmission, AR Coated Tempered Glass |
| Dimensions: | (L) 1955 mm x (W) 990 mm x (H) 35mm |
| J-box: | IP 67/IP68 certified 4-rail, 3 diodes junction box |
| Cable: | Solar cable 400mm to 1200 mm length, 4 mm² |
| Connectors: | MC4 compatible connectors |
| Application Class: | Class A |
| Electrical Safety: | Class II |
| Fire Safety: | Class C (Type 1) |
| Surface load: | (snow load 5400 Pa, wind load 2400 Pa). |

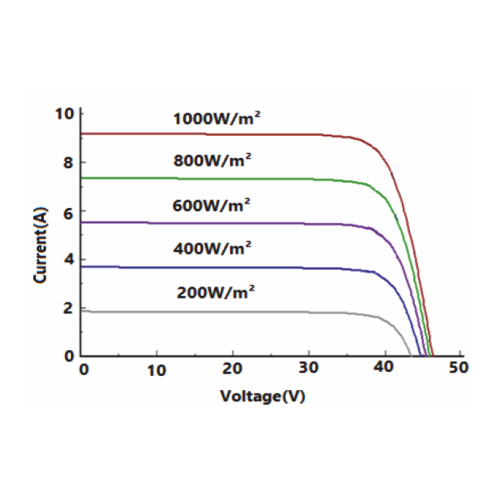

IV Curve

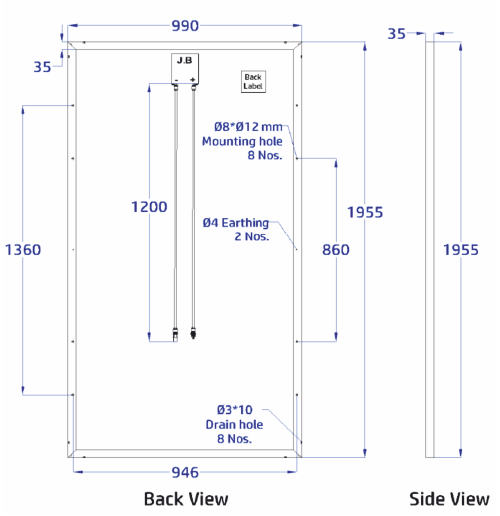

Drawing (Measurements in mm)
- The electrical data given here is for reference purpose only.
- Dispose-off the product as E-Waste after end of its working life.
- ** Refer to sunskywarranty document for terms and conditions.
- Due to constant product modifications, Goldi Solar reserves the right to amend the above specifications without prior notice.
