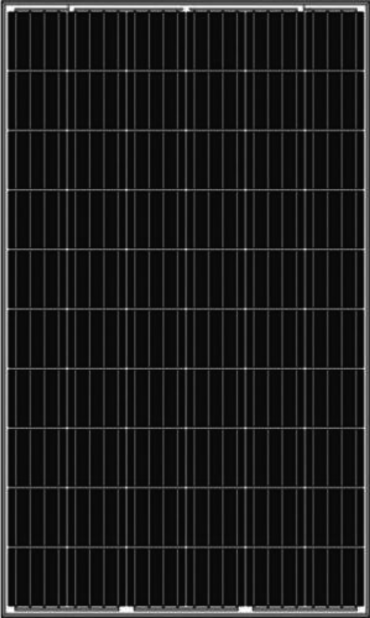

Monocrystalline solar panels are generally thought of as a premium solar product. The main advantages of moncrystalline panels are higher efficiencies and sleeker aesthetics.
Key Features
- Excellent module conversion efficiency more than 19%.
- Up to +2% positive power output guaranteed.
- Reducing equipment loss increases the power generation in overall system.
- Loss minimization due to excellent temperature co-efficient.
- BOS cost Reduction for 1500 VDC System by connecting more modules in a string.
- Better performance even at low irradiance condition.
- Higher specific yield.
Quality & Reliability
- Manufactured in an ISO 9001:2015, ISO 14001:2015,ISO 45001:2018 certified facility.
- Manufactured using high grade raw materials from reputed international suppliers adopting a stringent quality criteria.
- PID resistant (IEC 62804).
- IP68 rated junction box for long-term weather endurance.
- 25 years output warranty.
- Certified for hail resistance (According to IEC 61215)
- Certified with IEC & BIS.
| Module Type: | SUNSKY072FWpPRC24 | ||
|---|---|---|---|
| Capacity rating – Pmax(Wp): | 390 | 395 | 400 |
| Power Tolerance (%): | 0-2 | 0-2 | 0-2 |
| Module efficiency (%): | 19.65 | 19.90 | 20.15 |
| Rated voltage - Vmp(V): | 40.14 | 40.34 | 40.53 |
| Rated current - Imp(A): | 9.72 | 9.80 | 9.88 |
| Open circuit voltage - Voc(V): | 49.15 | 49.37 | 49.59 |
| Short circuit current - Isc(A): | 10.07 | 10.14 | 10.22 |
Under Standard Test Conditions (STC) of irradiance 1000 W/m², spectrum AM 1.5 and cell temperature of 25°C. Except Pmax, all other parameters have a tolerance of ±3%.
| Temperature range: | -40°C to + 85°C |
|---|---|
| Maximum system voltage: | 1500 VDC |
| NOCT: | 45± 2°C |
| Hail resistance: | Maximum diameter of 25 mm with velocity 23 m/s |
| Product warranty**: | 10 Year |
|---|---|
| Product warranty**: |
Limited warranty for power output :- 90% for 10 years and 80% for 25 years |
| Product Certificates: | IEC 61215, IEC 61730,IEC 61701,IEC 62716,IEC 62804, CE, BIS |
| Solar cells: | 72 pcs Monocrystalline Silicon(PERC), 5BB |
|---|---|
| Encapsulation: | Ultra - clear PID free EVA (Ethylene-Vinyl-Acetate) |
| Backside: | UV protected reflective backsheet |
| Frame: | Silver Anodized Aluminium Alloy (screwless) |
| Front glass: | 3.2 mm, High Transmission, AR Coated Tempered Glass |
| Dimensions: | (L) 1955 mmx (W) 1000 mmx (H) 35mm |
| J-box: | IP68 certified 4-rail, 3 diodes junction box |
| Cable: | Solar cable 400mm to 1200 mm length, 4 mm² |
| Connectors: | MC4 compatible connectors |
| Application Class: | Class A |
| Electrical Safety: | Class II |
| Fire Safety: | Class C (Type 1) |
| Surface load: | (snow load 5400 Pa, wind load 2400 Pa)[IEC 61215]. |

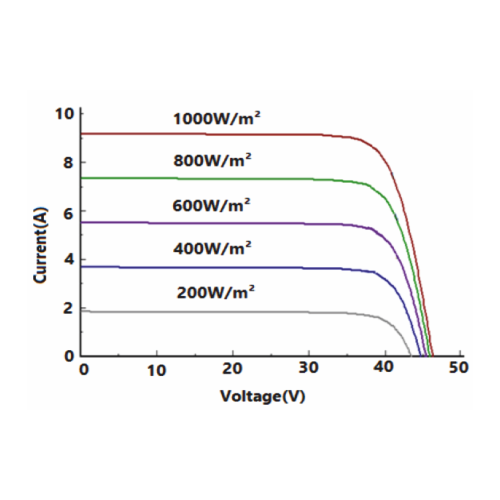

IV Curve

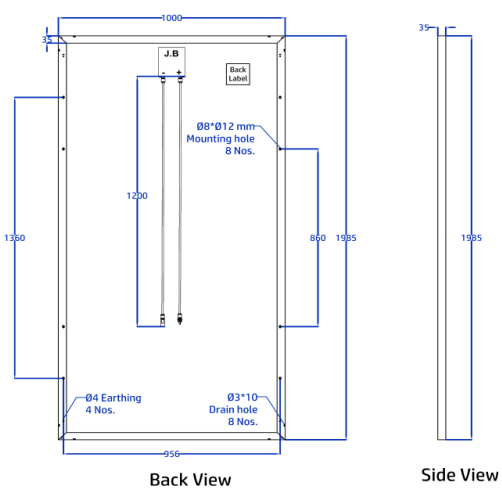

Drawing (Measurements in mm)
- For handling & installation instructions refer Goldi Solar Installation Manual available on Company website.
- Before placing order confirm your requirement with our sales representative.
- The electrical data given here is for reference purpose only.
- Dispose-off the product as E-Waste after end of its working life.
- ** Refer to Goldi Solar’s warranty document for terms and conditions..
- Due to constant product modifications, Goldi Solar reserves the right to amend the above specifications without prior notice.
